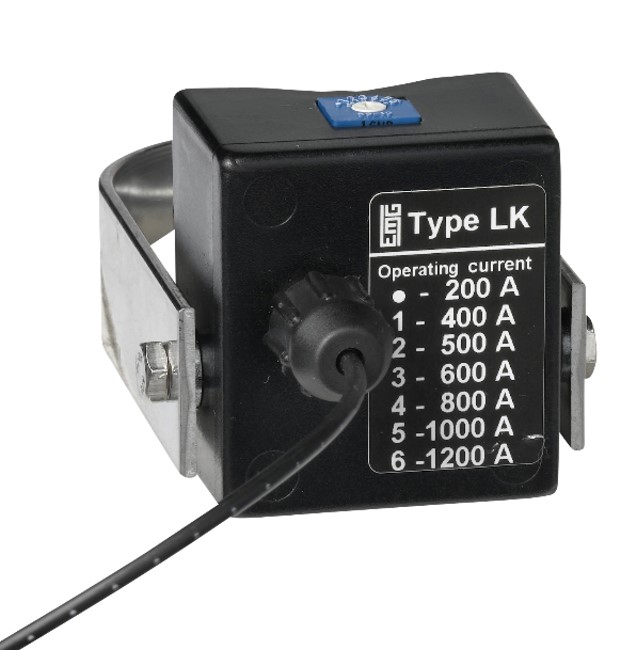

Sensor for short-circuit
Type LK

This sensor is used for short-circuit detection. The potential-free connection between the sensor and the display unit is done by a fibre optic cable. The short-circuit sensor can be assembled on screened and unscreened cables. The sensor is mounted on the conductor or cable with a divisible stainless steel bracket. Therefore the sensor can be retrofitted.

The trip current can be selected by a 7-step rotary switch.

Order Data Article no.
Type LK (round conductor) | 5-15mm 12.20.11
Type LK (round conductor) | 15-25mm 12.21.11
Type LK (round conductor) | 22-42mm 12.22.11
Type LK (round conductor) | 40-50mm 12.23.11
Type LK (round conductor) | 50-65mm 12.24.11
Type LK (flat conductor) | up to 40x10mm 12.25.11
Type LK (flat conductor) | 40x10 to 60x15mm 12.26.11

Features and Benefits

Potential-free connection to display unit by fibre optic cable
Seven trip currents: 200 / 400 / 500 / 600 / 800 / 1000 / 1200 A
Selectable by rotary switch
Completely casted and sealed. IP67.
