Voltage indicator
Type SPA

The voltage indicator type SPA can be used in medium voltage networks with a rated voltage of 5 kV to 36 kV. Its function is the permanent indication of the voltage status of the monitored conductors. The indication of the voltage is done by one LED indicator for each phase.

The voltage indicator type SPA is available in two versions:

- SPA-L: The connection between the sensors and the display unit is done by potential-free fibre optic cables. The sensors must be mounted on unscreened conductors.
- SPA-S: The display unit is directly connected to the insulator or bushing.



For the operation of the display device, an auxiliary power supply is required.

The voltage indicator type SPA provides one to three remote indication contacts. The desired behaviour of these potential-free contacts can be determined when ordering.

Order Data Article no.

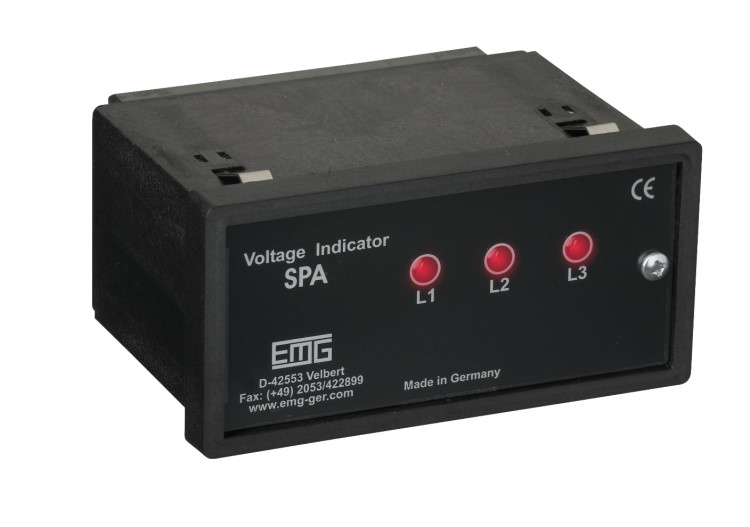

Type SPA-EL | panel-mounted 35.10.10

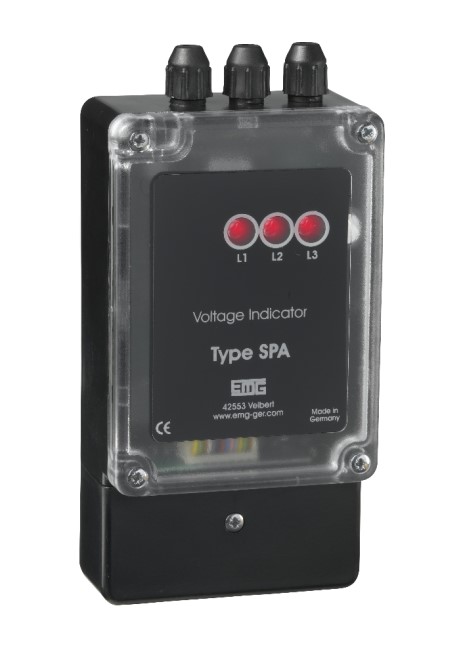

Type SPA-AL | surface-mounted 35.20.10
Type SPA-ES | panel-mounted 35.50.10
Type SPA-AS | surface-mounted 35.60.10
Voltage sensor | see Type BF and BFP

Features and Benefits

Rated voltage range: between 5 kV and 36 kV
Sensors must be mounted on unscreened cables or flat conductors
LED indication
No auxiliary power for sensors
Power supply:
– 12-110 V DC
– or 115/230 V AC
No power supply for sensors required
Contacts for remote indication
Surface-mounted and panel-mounted housing
